Using Havoc C2 to bypass UAC

Demonstration of couple of UAC bypass methods using Havoc C2.

For this demonstration, I will be using Matthew David’s UAC BOF Bonanza project. This project combines multiple UAC bypass techniques into a Beacon Object File (BOF) that can be used with Havoc C2. I will be demonstrating following techniques:

• SilentCleanupWinDir - Modifies the "Environment\windir" registry key and executes the SilentCleanup scheduled task via schtasksrun by @TrustedSec.

• RegistryShellCommand - Modifies the "ms-settings\Shell\Open\command" registry key and executes an auto-elevated EXE (ComputerDefaults.exe).

• SspiUacBypass - Forges a token from a fake network authentication though SSPI Datagram Contexts. It will then impersonate the forged token and use CreateSvcRpc by @x86matthew to create a new SYSTEM service. Original research and code is from @splinter_code.

• TrustedPathDLLHijack - Creates fake windows directory C:\Windows \, copies supplied DLL to location, and executes auto-elevated EXE (ComputerDefaults.exe).

Note: I was not able to compile the project with CmstpElevatedCOM, ColorDataProxy and EditionUpgradeManager techniques included as they are dependent on a version of ntos.h that wouldn’t compile for me. So these will be excluded from this demonstration.

I am using Ubuntu 22.04 and Havoc C2 0.7 for this demonstration.

Clone the project using the following command:

git clone https://github.com/icyguider/UAC-BOF-Bonanza.git

First attempt to compile.

cd UAC-BOF-Bonanza
make

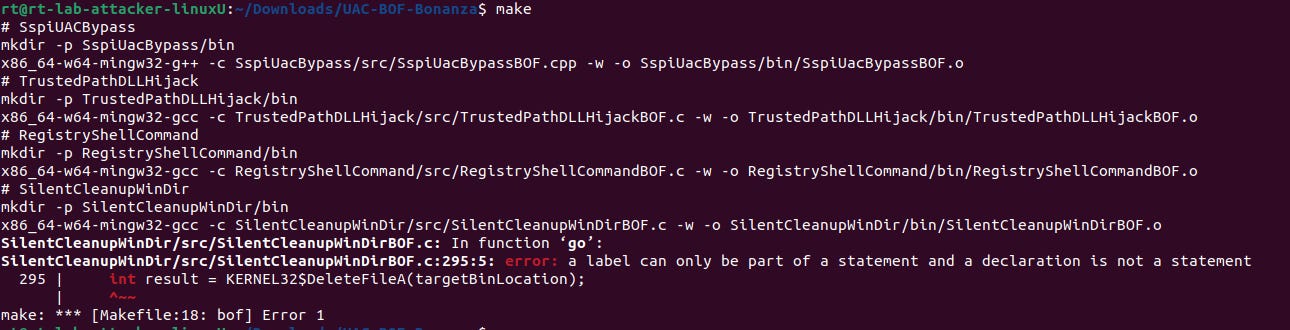

SlientCleanupWinDir technique failed to compile. Needs a minor edit.

To fix this error, open SilentCleanupWinDir/src/SilentCleanupWinDirBOF.c and add a ; after line 293 and save the file:

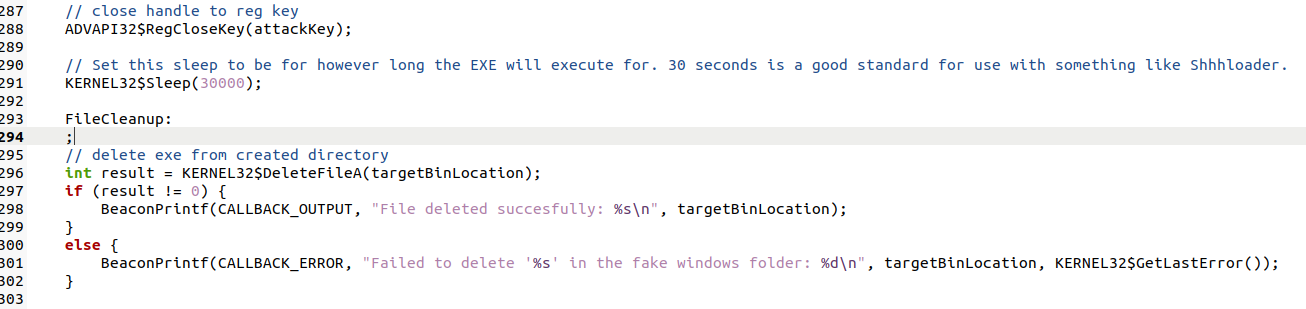

Minor edit in SilentCleanupWinDirBOF.c to fix the compile error.

Second attempt to compile:

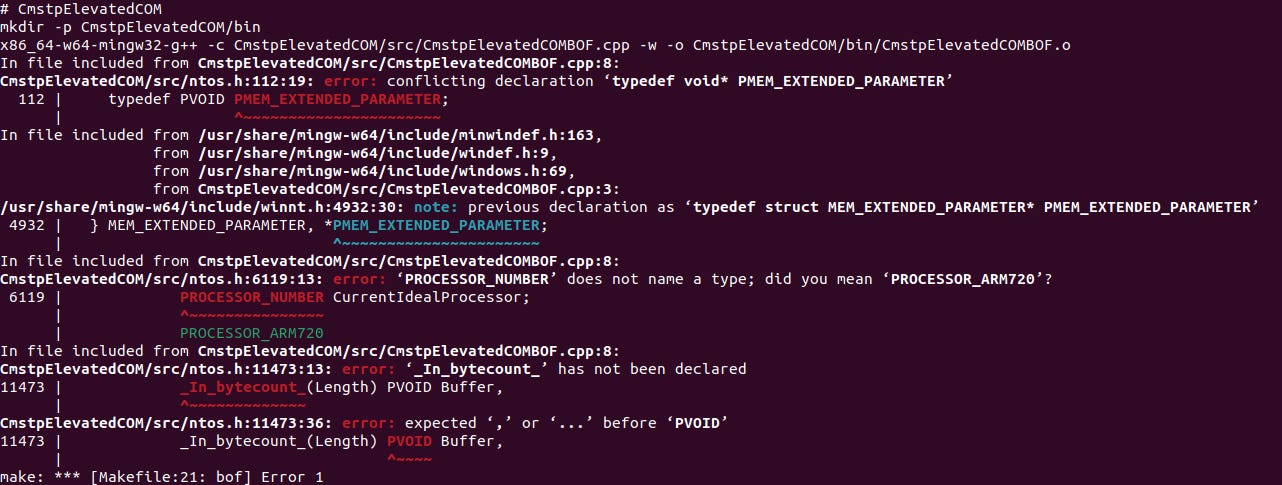

CmstpElevatedCOM failed to compile.

These errors occure due to the ntos.h header file. At the time of writing, I am unable to resolve these. I will update the post as and when I find a solution. For now, I am just going to get rid of this and any other technique that throws these errors.

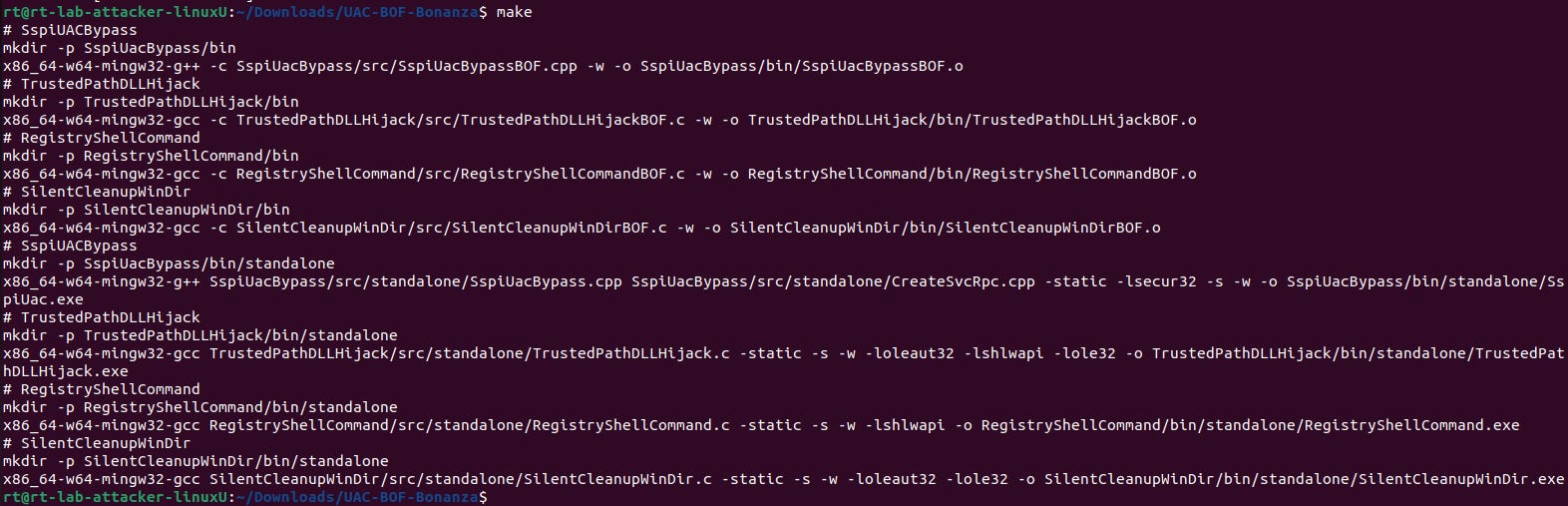

Final attempt to compile:

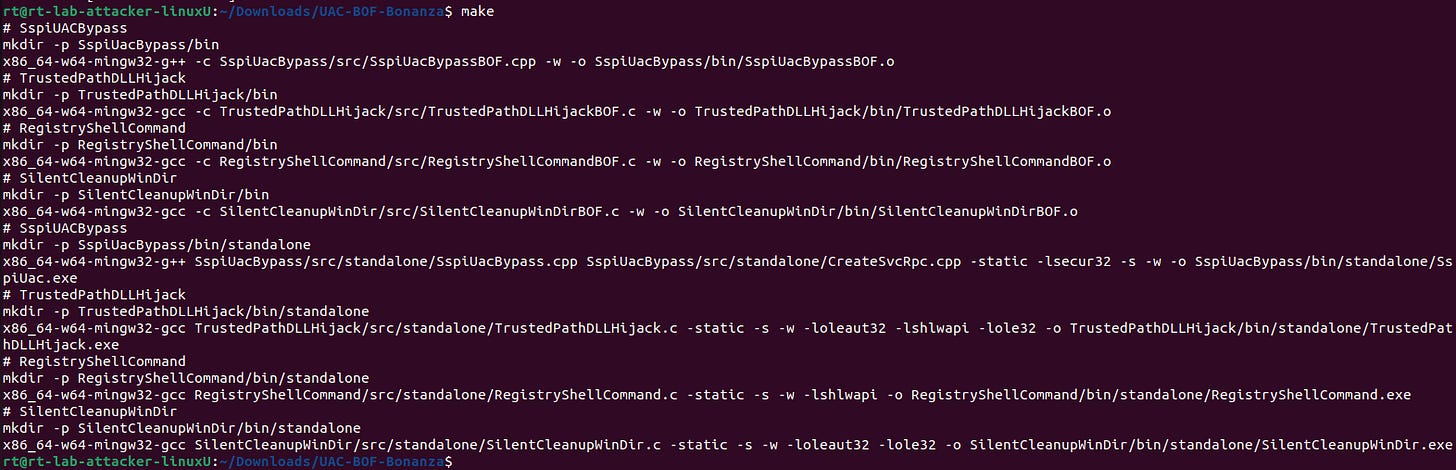

Successfully compiled the remaining techniques.

To load this in Havoc C2, go to Scripts → Script Manager → Load Script and select the Havoc-UACBypass.py file.

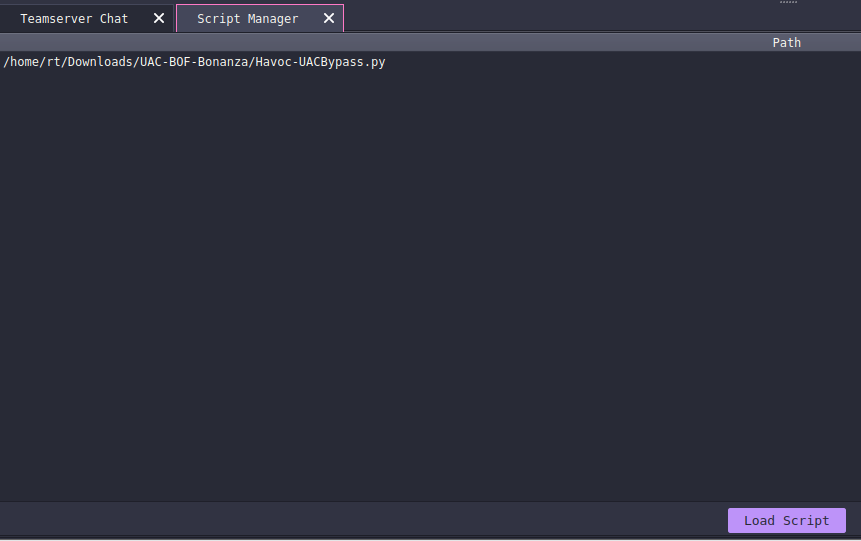

Loading the BOF in Havoc C2.

I am assuming that there’s already a beacon from a Windows 10 machine calling back to Havoc C2.

Havoc C2 beacon running with standard privileges.

To see available UAC bypass options, issue the following command:

help uac-bypass

UAC Bypass options in UAC Bypass Bonanza.

Remember that last three options will not work as we have not included underlying BOFs for them.

UAC bypass via silentcleanup technique

To see the command format use

help uac-bypass silentcleanup

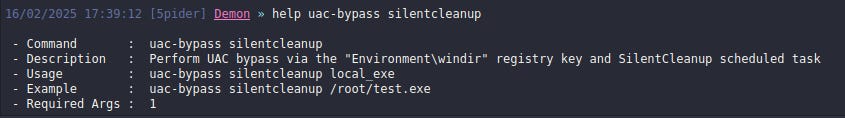

Help menu for silentcleanup UAC bypass technique

To use this technique, we need a locally stored EXE file that contains our payload. If you don’t have one, you can generate it using Attack → Payload menu in Havoc C2.

Let’s execute this technique:

uac-bypass trustedpath /home/rt/uac.exe

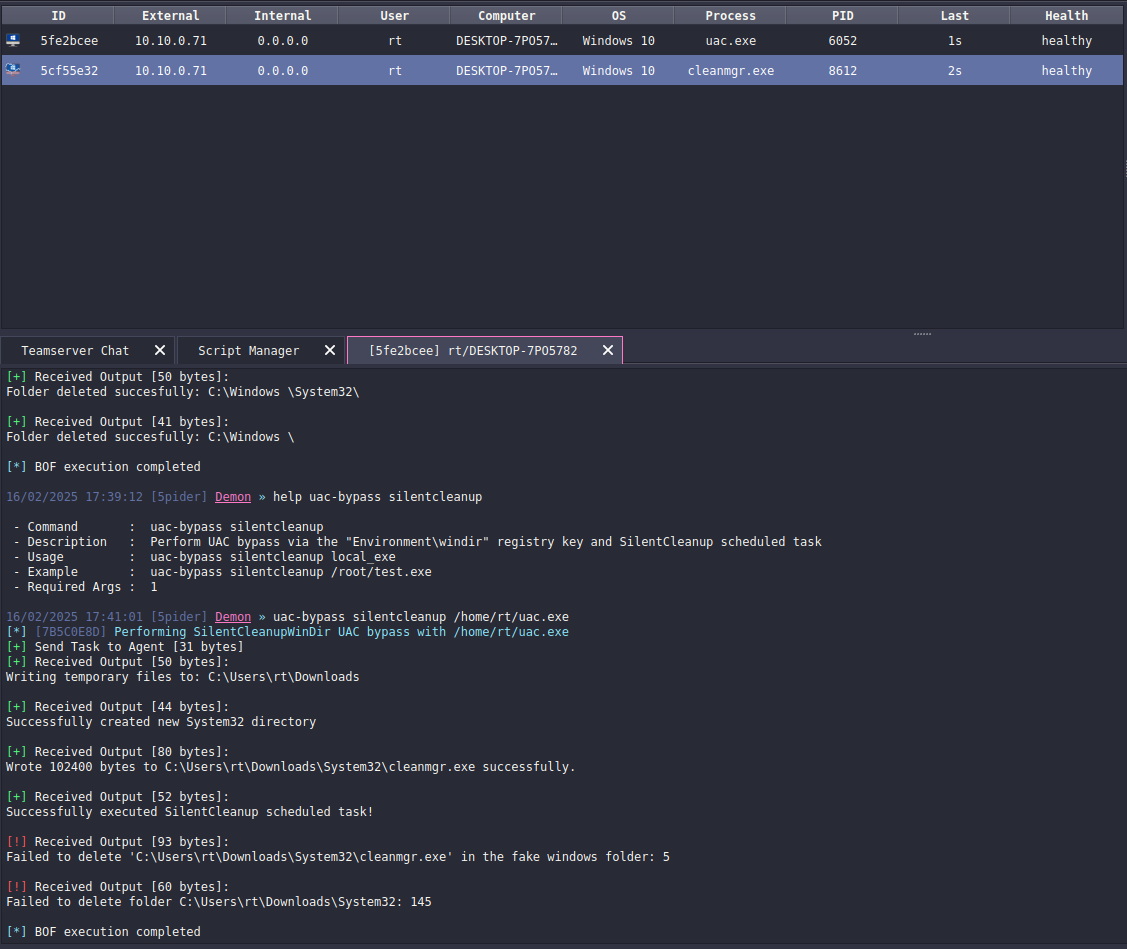

Executing silentcleanup UAC bypass technique.

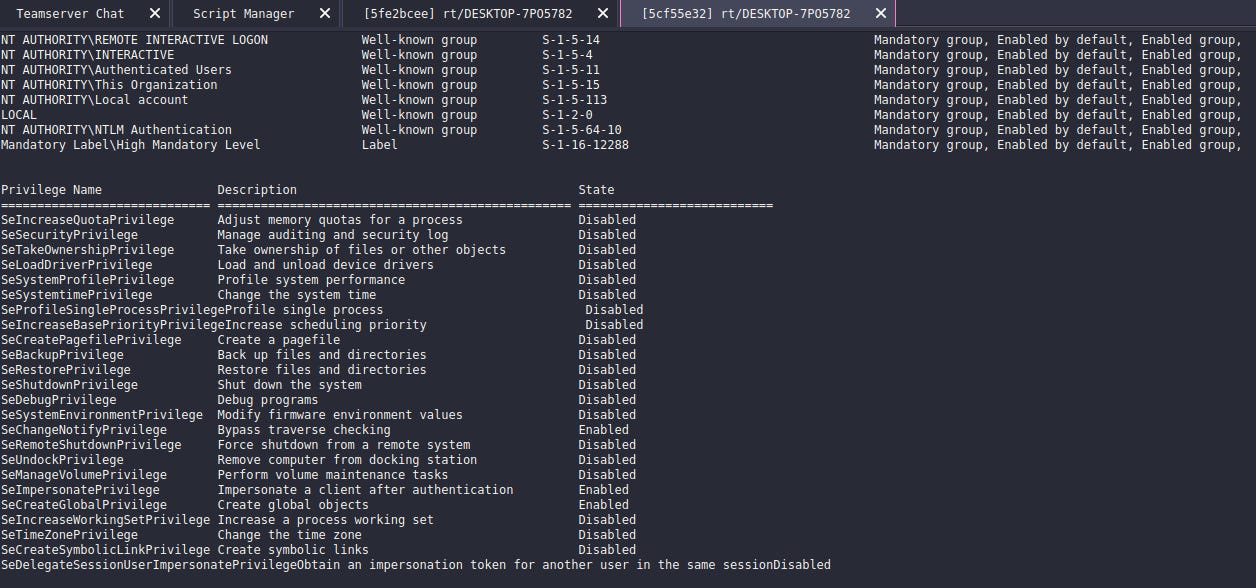

Recieved a beacon running with administrator privileges.

UAC bypass via sspidatagram technique

To see the command format use

help uac-bypass sspidatagram

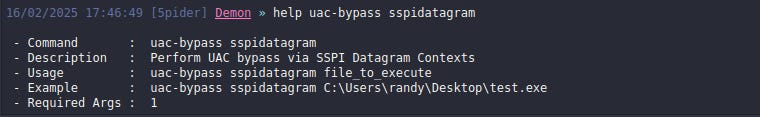

Help menu for sspidatagrap UAC bypass technique

To use this technique, we need an EXE file, stored on the target machine, that contains our payload. If you don’t have one, you can generate it using Attack → Payload menu in Havoc C2. For this demo, I will use the one that I already have on the target machine.

Let’s execute this technique:

uac-bypass sspidatagrap C:\Users\rt\Downloads\uac.exe

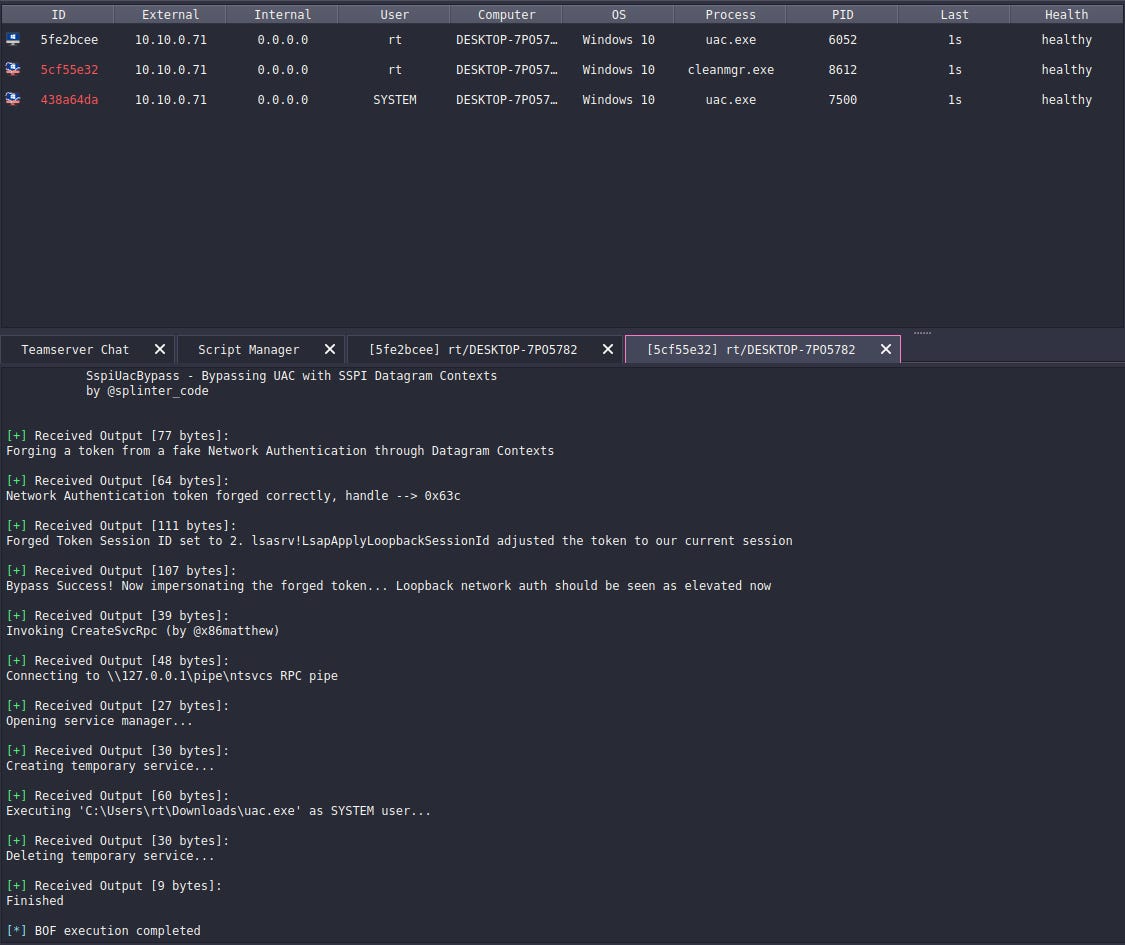

Executing sspidatagram UAC bypass technique.

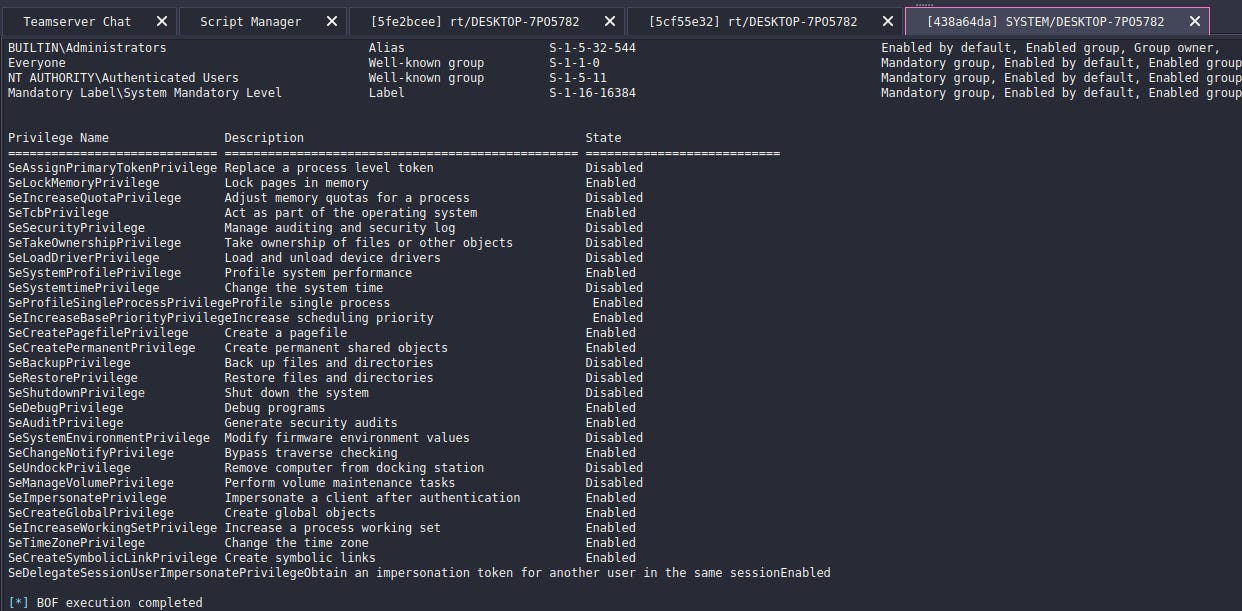

Received a beacon running with SYSTEM privileges.

UAC bypass via registrycommand technique

To see the command format use

help uac-bypass registrycommand

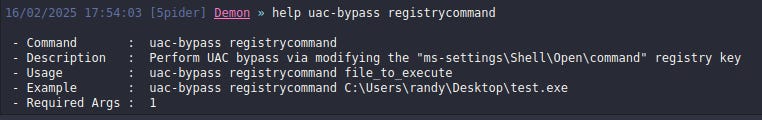

Help menu for registrycommand UAC bypass technique.

To use this technique, we need an EXE file, stored on the target machine, that contains our payload. If you don’t have one, you can generate it using Attack → Payload menu in Havoc C2. For this demo, I will use the one that I already have on the target machine.

Let’s execute this technique:

uac-bypass registrycommand C:\Users\rt\Downloads\uac.exe

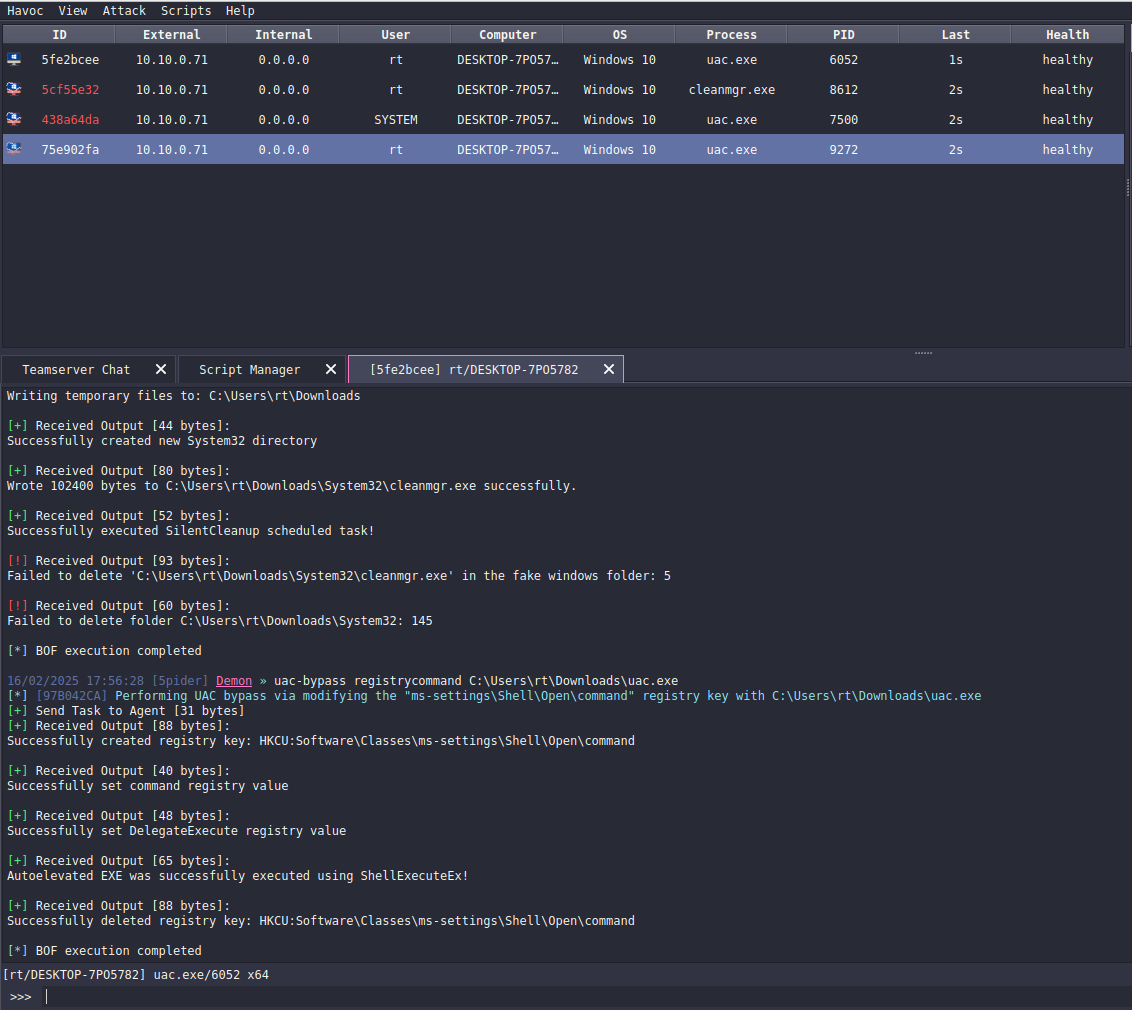

Executing registrycommand UAC bypass technique.

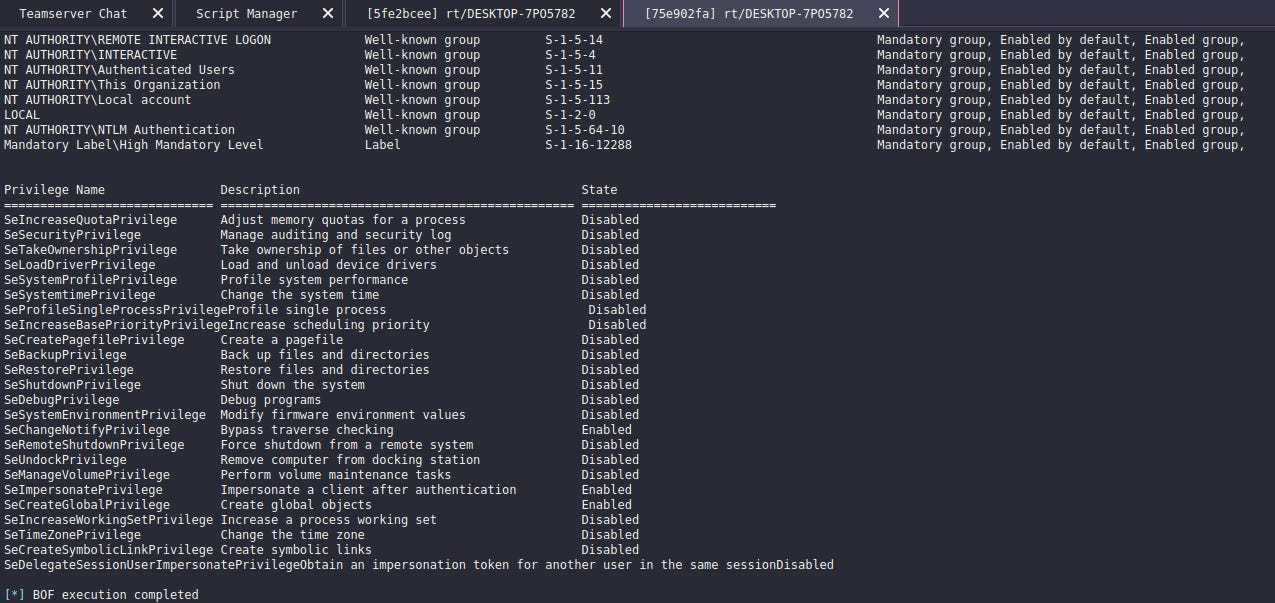

Received a beacon running with Administrator privileges

UAC bypass via trustedpath technique

To see the command format use

help uac-bypass trustedpath

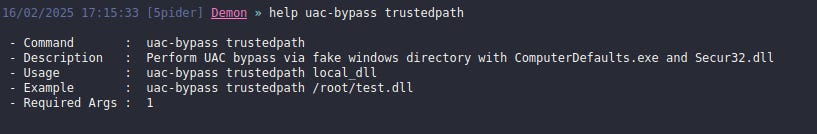

Help menu for trustedpath UAC bypass technique.

To use this technique, we need a locally stored DLL file that contains our payload. If you don’t have one, you can generate it using Attack → Payload menu in Havoc C2.

Let’s execute this technique:

uac-bypass trustedpath /home/rt/uac.dll

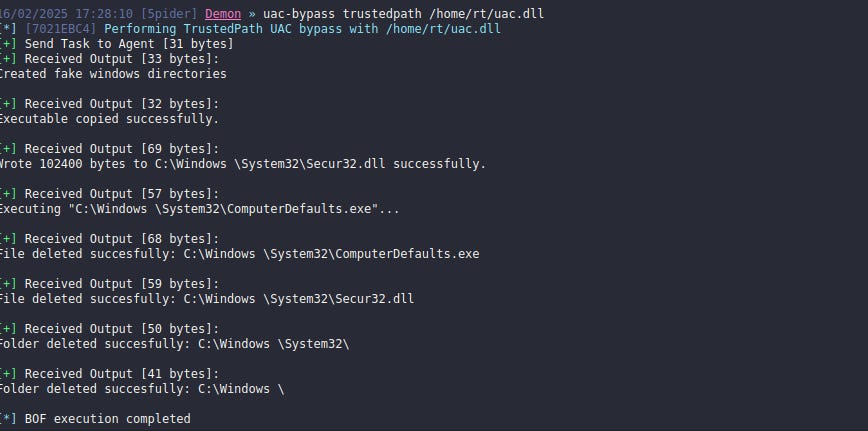

Executing trustedpath UAC bypass technique.

Even though the execution was successful, I did not receive an elevated beacon. Maybe I need to use a different DLL.

Red Team Notes
- Matthew David’s UAC BOF Bonanza can be used to bypass User Access Control on Windows machines and execute code with elevated privileges.
