Let's write a Beacon Object File for Havoc C2 - Part 1

Learn how to use Windows APIs in a Beacon Object File (BOF).

In this series of posts, I will create a Beacon Object File (BOF) that works with Havoc C2. I will start by implementing simple functionality and gradually increase the level of complexity.

If this is the first time you are learning about BOFs, I recommend that you read my posts, Enhancing C2 agent via Beacon Object Files (BOF) and Creating a simple beacon object file for Havoc C2 for a quick introduction to BOF and BOF development.

Follow my journey of 100 Days of Red Team on WhatsApp, Telegram or Discord.

In this part, I will cover how to use Windows APIs in a BOF. While this might seem trivial to implement in a typical C or C++ program, it comes with a learning curve when implementing in a BOF. The reason for this is because a lot of common functions (e.g., strlen, strcmp, etc.) are not available via a BOF.

I am using Ubuntu 24.04 (with build-essential and mingw-w64 installed), Havoc C2 0.7 and Windows 10 target for this demonstration. I am assuming that there’s already a beacon from a Windows 10 machine calling back to Havoc C2.

I will start with a very simple Windows API, MessageBoxA. The Beacon API exposes equivalent to few Windows APIs but MessageBoxA is not one of them. To use MessageBoxA in a BOF, we need to include its prototype at the beginning of the file.

For MessageBox, this prototype is:

WINUSERAPI int WINAPI USER32$MessageBoxA(HWND hWnd,LPCSTR lpText,LPCSTR lpCaption,UINT uType);

The following command can be used to find the prototype of a Windows API:

grep -r " <WINDOWS API NAME>"

cd /usr/share/mingw-w64
grep -r " MessageBoxA"

Prototype of MessageBoxA() Windows API.

As can be seen in the above screenshot, the prototype for MessageBoxA is included in the file /usr/share/mingw-w64/include/winuser.h.

While at it, let’s search for the prototype of GetLastError as well.

grep -r " GetLastError"

Prototype of GetLastError() Windows API.

With prototypes in place, let’s write the code for the BOF:

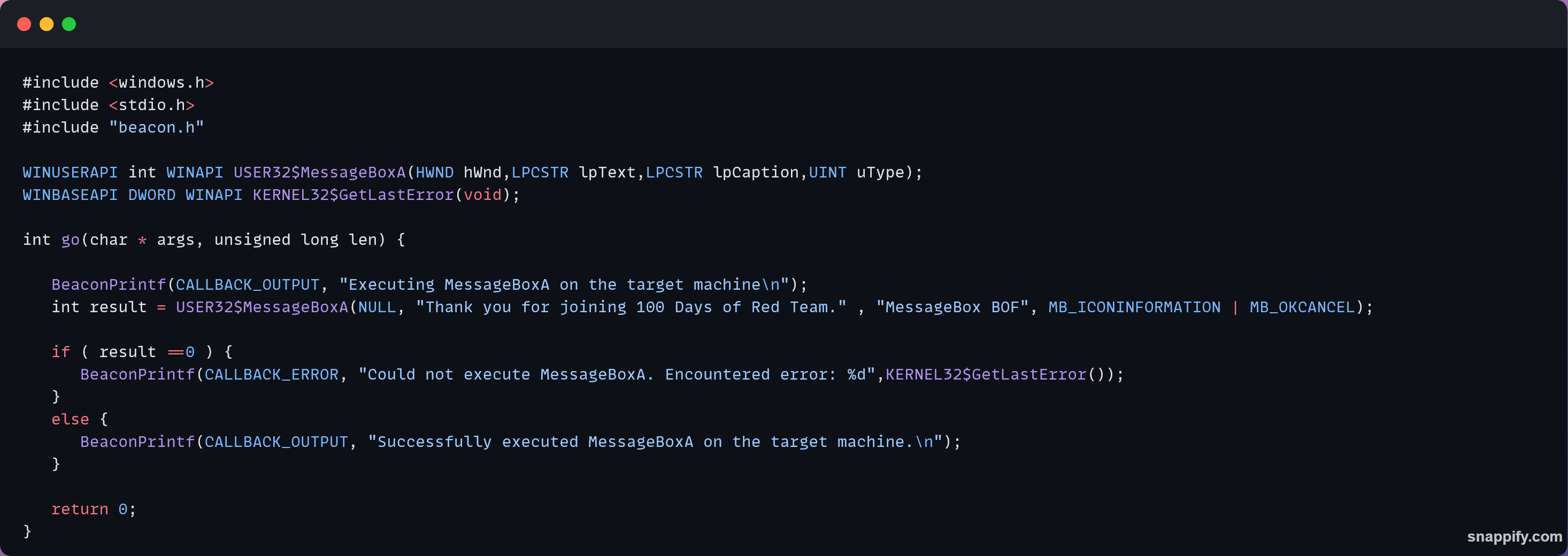

Code for message-box.c

The code is available here.

Save the code in .c file and use the following command to compile (use the beacon.h file available here):

x86_64-w64-mingw32-gcc -c message-box.c -o message-box.o -w

Next, let’s write the Python script that will register the command to invoke this BOF. Remember, we can also use the command inline-execute to execute a BOF without registering a command in the Havoc C2 GUI.

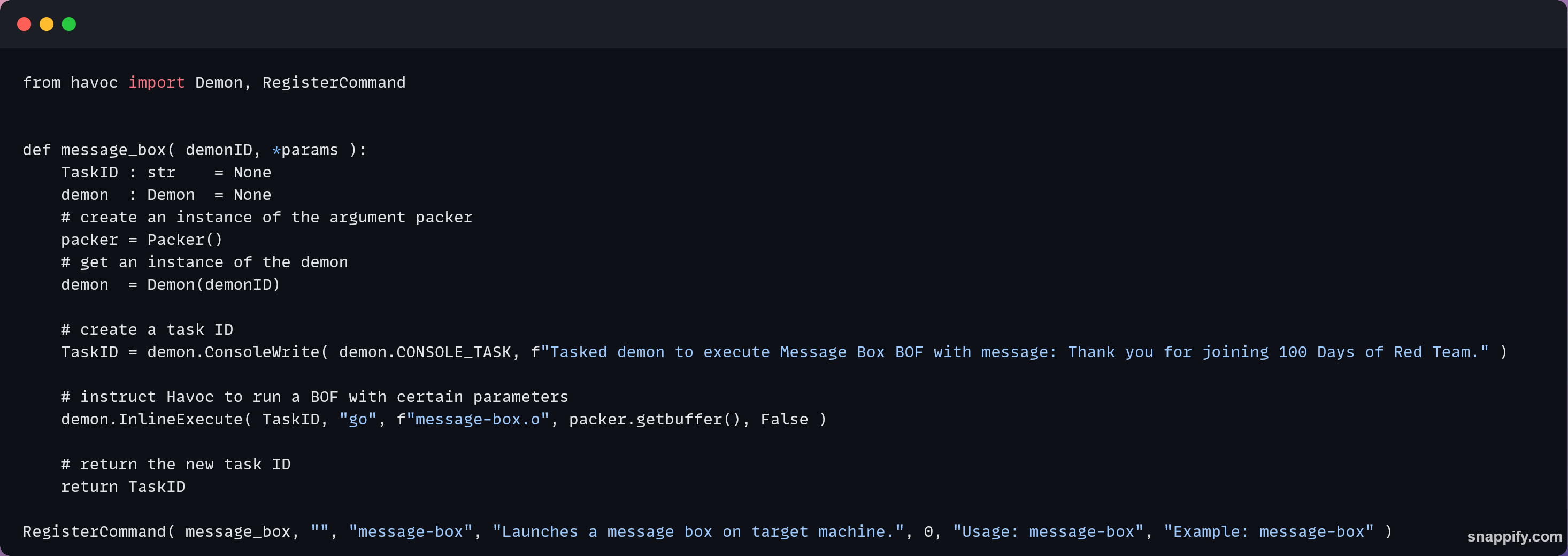

Code for message-box.py

The code is available here.

To load this in Havoc C2, go to Scripts → Script Manager → Load Script and select the message-box.py file.

message-box command in the Havoc C2 help menu.

To see the help for the message-box command, use

help message-box

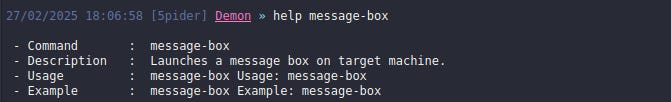

message-box BOF help menu

Now, lets run the command:

message-box

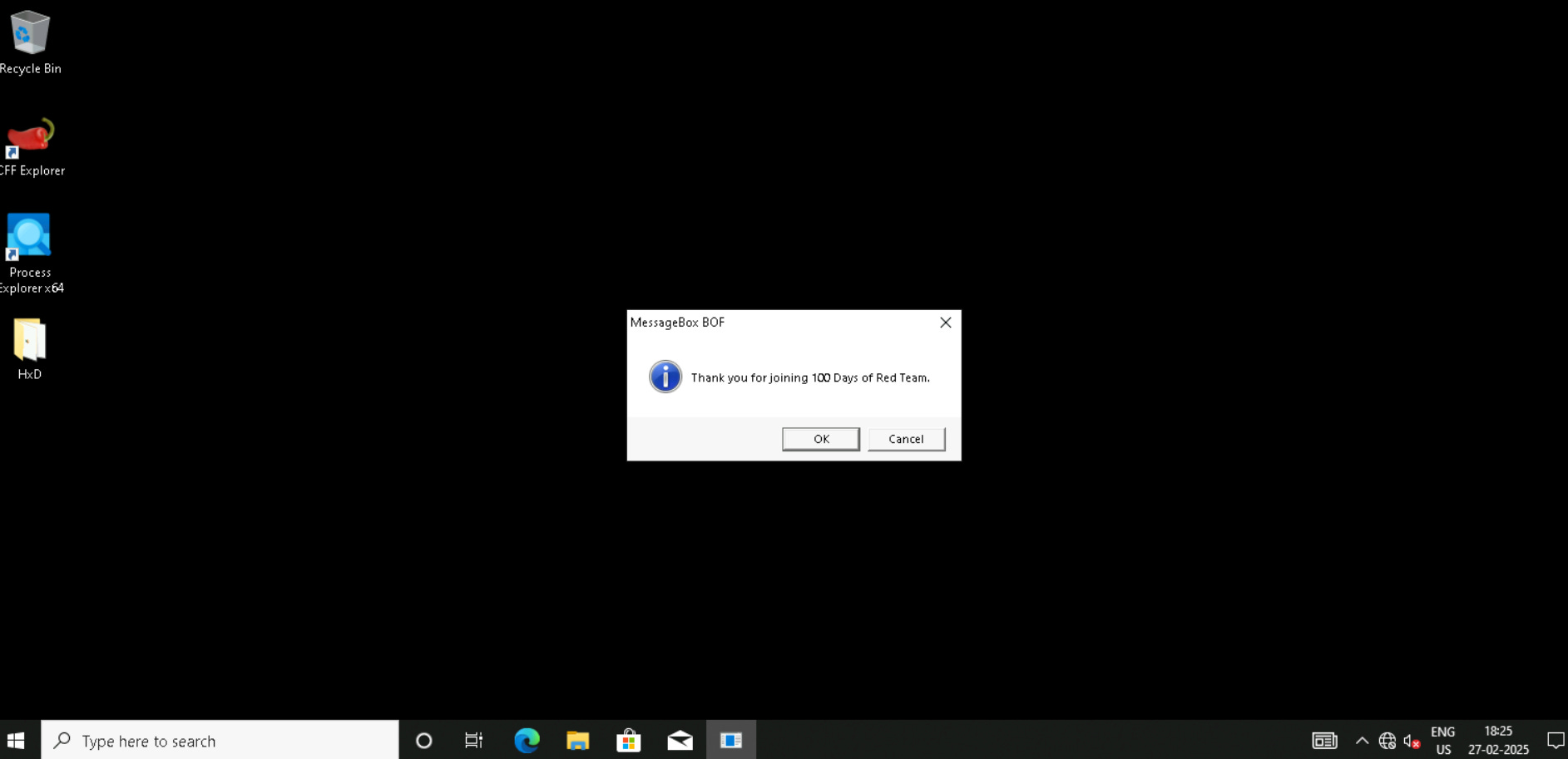

BOF created a message box on the target machine.

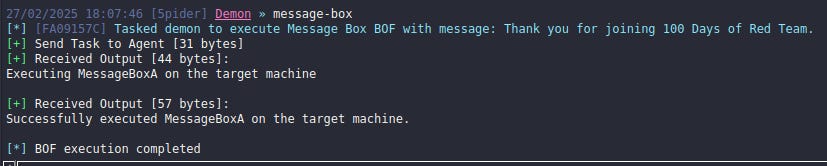

Executing message-box BOF.

Red Team Notes
- Beacon API exposes equivalent to few Windows APIs and other functions for beacon internal use.
- Other Windows APIs can be accessed from a Beacon Object File (BOF) by specifying their prototype at the beginning of the code file (after include statements).
